Polypropylene Bypass Chemical Fume Hoods

Get In Touch!

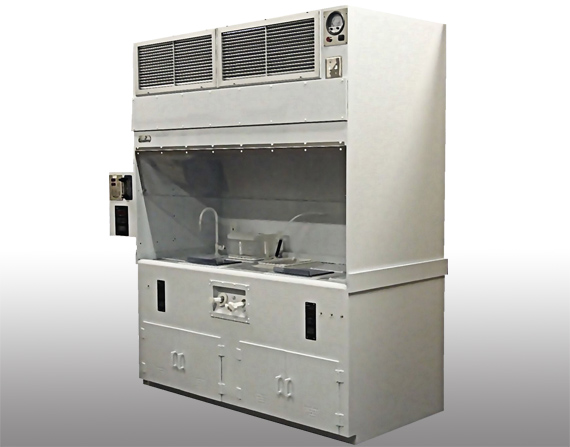

Bypass Fume Exhaust Hoods
PFH-VCBS Series :

CleanZones, LLC offers many different styles and design configurations to meet your exact requirements. From standard Constant Volume Chemical Fume Exhaust Hoods, Bypass Fume Exhaust Hoods to Vertical Flow Exhausting Class 100 Work Stations and Wet Process Station Fume Exhaust Hoods with process tanks, heated baths, dump rinsers, and more for the intricate chip manufacturing process. We also offer standard and custom Casework to fit your entire Lab design requirements.

Our entire Polypropylene product line features 100% stressed relieved white polypropylene with heat welded seams for the best possible corrosive resistance of acids, solvents and most other chemicals. The reinforced tabletop can withstand heavy loads and the “rolled front” edge offers greater comfort. Vented base cabinets allow for storage of chemical bottles without the risk of fumes escaping to the cleanroom or lab.

We offer standard and custom products without the custom cost to meet your most demanding Fume Exhaust specifications. Choose the correct type for your application or call and speak to one of our experienced sales engineers for assistance.

Phone:  888-399-2464

Close Up Tabletop-Constant Volume Fume Exhaust

Features for all Constant Volume Fume Exhaust Hoods :

  • Standard construction is 100% Corrosive Resistant Polypropylene with all heat welded joints and seams
  • Available in 3ft to 8ft size widths
  • Solid Reinforced tabletop with “rolled front” comfort edge
  • Recessed 2 pin T-8 fluorescent lighting 100 ft. candle on work surface and prismatic refractive lens in a sealed compartment outside of the air stream
  • 3-position adjustable PVC front angled shield 12” opening in closed position
  • Adjustable baffles on rear wall of unit
  • Vented hinged or sliding doors on base cabinet
  • UL approved electrical components
  • Exhaust collar(s) at top of unit ‹0.5 in. w.g. static pressure across hood

CleanZones, LLC offers many different styles and design configurations to meet your exact requirements. From standard Constant Volume Chemical Fume Exhaust Hoods, Bypass Fume Exhaust Hoods to Vertical Flow Exhausting Class 100 Work Station and Wet Process Station Fume Exhaust Hoods with process tanks, heated baths and dump rinsers, etc. for the intricate chip manufacturing process. We also offer standard and custom Casework to fit your entire Lab design requirements.

Our entire Polypropylene product line features 100% stressed relieved white polypropylene with heat welded seams for the best possible corrosive resistance of acids, solvents and most other chemicals. The reinforced tabletop can withstand heavy loads and the “rolled front” edge offers greater comfort. Vented base cabinet allows for storage of chemical bottles without the risk of fumes escaping to the cleanroom or lab.

We offer standard and custom products without the custom cost to meet your most demanding Fume Exhaust specifications. Choose the correct type for your application or call and speak to one of our experienced sales engineers for assistance.
