Horizontal Flow Class 100 Work Stations

1.  Table Top Class 100 Work Station
2.  Slimline Class 100 Work Station
3.  Console Class 100 Work Station

CleanZones, LLC offers our Horizontal Flow Class 100 Work Stations in three different design configurations and materials of construction to meet your exact requirements.  All of our Horizontal Flow Class 100 Work Stations feature HEPA or ULPA Fan Filter units,recessed lights, clear acrylic side panels to contain the airflow and adjustable solid state airflow control.

We offer three types of Horizontal Flow Class 100 Work Stations, Table Top, Slim Line or Full Console Stations.  Choose the correct type for your application or call and speak to our experienced sales engineer for assistance.

FEATURES

TABLE TOP CLASS 100 WORK STATION TS SERIES

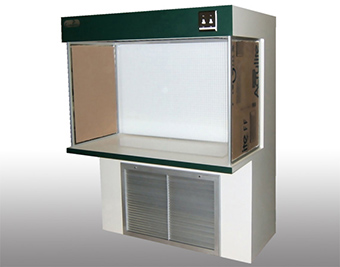

We offer the TS Series Table Top units that are designed to be mounted on an existing work bench or on optional base cabinet.  These units provide Class 100 horizontal laminar flow atmosphere in an operator work station environment.  Completely self-contained, they function effectively in an uncontrolled area.  Special custom products are available without the custom cost for application specific projects such as units for Hot Cell inserts.

SLIMLINE CLASS 100 WORK STATION CS SERIES

We offer the CS Series Slim Line units that are designed to be free standing.  The CS Slim Line unit measures only 24” deep to fit through most 36” doorways, and yet still has a standard 24” deep work surface.  These units provide Class 100 horizontal laminar flow atmosphere in an operator work station environment.  Completely self-contained, it functions effectively in an uncontrolled area.  Special custom products are available without the custom cost for application specific projects.

CONSOLE CLASS 100 WORK STATION CS SERIES

We offer the C Series Console units that are designed to be free standing.  The C Series Console is designed with full leg room below the standard 24” deep table top.  This Clearance under the work surface allows for installation of sinks, tanks, plumbing and other special equipment.These units provide Class 100 horizontal laminar flow atmosphere in an operator work station environment.  Completely self-contained, it functions effectively in an uncontrolled area.  Special custom products are available without the custom cost for application specific projects.

Features for all of our Horizontal Class 100 Work Stations

• Standard construction is Wood board with plastic laminate exterior.  Corrosive Resistant Polypropylene, Epoxy Painted Steel, 304 or 316L Stainless Steel units are also available.
• Rear or Front loaded High Efficiency Particulate Air (HEPA) Filter: 3” thick minipleatdesign 99.99% efficient @ 0.3 micron in an anodized aluminum frame, PSL tested in accordance with IEST Standards.
• High Efficiency direct drive 120V motor blowers for continuous duty.  Motors/Blowers are selected to maintain constant airflow rate up to twice the initial static pressure.
• Solid-state speed control.
• Recessed 2 pin T-8 fluorescent lighting 100 ft.candle on work surface and prismatic refractive lens cover.
• Prefilters with easy replacement and maintenance.
• Three-Prong 120V power cord.
• Average measured clean air velocity 90 fpm (+/- 10fpm). All measured values within +/- 20% uniformity.
• Clear Acrylic Side Panels.
• Individually tested and certified to meet or exceed the specifications for Unidirectional Flow Clean-Air Devices as per Institute of Environmental Sciences and Technology recommended practices.

Many options are available for this unit.  Consult our factory trained experienced sales engineering staff for more details.
